Understanding 24V Relays: A Comprehensive Guide

Relays are crucial components in many electrical systems, acting as electrically operated switches. Understanding their functionality, especially regarding voltage specifications like 24V relays, is vital for engineers, hobbyists, and anyone working with electrical circuits. This comprehensive guide delves into the intricacies of 24V relays, covering their applications, specifications, and selection criteria.

What is a 24V Relay?

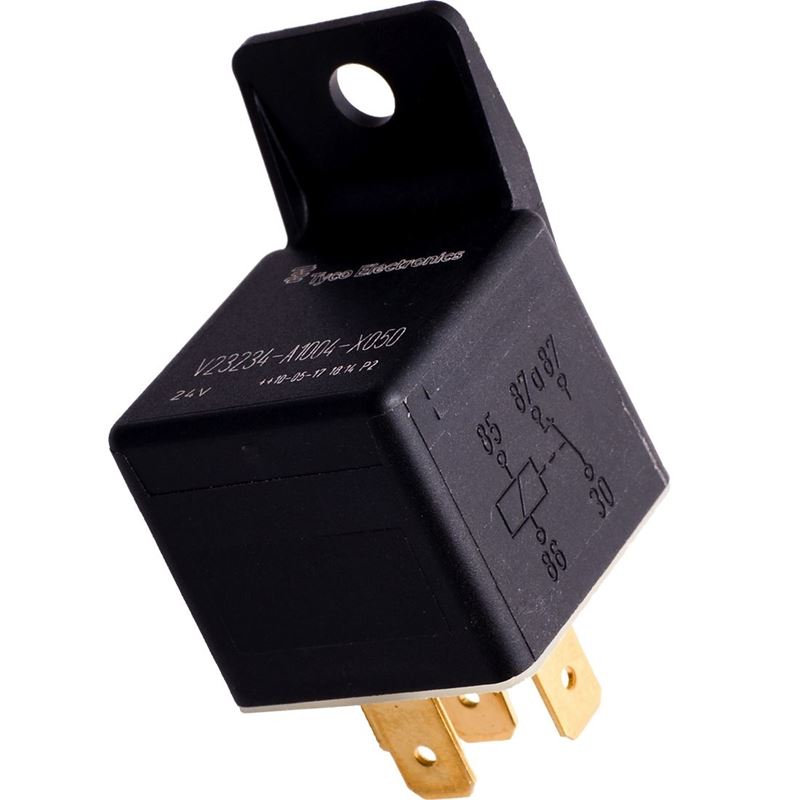

A 24V relay is an electromechanical switch controlled by a 24-volt DC electrical signal. It uses a low-power control signal to switch a much higher-power circuit. This allows for the remote control of high-voltage or high-current loads using a lower voltage control signal. Think of it as a remote control for your power switch, enabling safe and efficient operation.

Key Components and Functionality:

• Coil: The coil is the heart of the relay. When a 24V DC signal is applied to the coil, it generates a magnetic field.
• Contacts: These are the switching elements. The magnetic field created by the coil actuates the contacts, closing or opening the circuit depending on the relay type (normally open or normally closed).
• Contact Rating: This specifies the maximum voltage and current the contacts can safely switch. It's crucial to select a relay with a contact rating exceeding the load's requirements. A 24V relay might switch a load far exceeding 24V.
• Enclosure: Relays often come in various enclosures for protection against environmental factors like dust, moisture, and vibrations.

Types of 24V Relays:

Several types of 24V relays exist, each designed for specific applications:

• SPDT (Single-Pole, Double-Throw): This type has one input and two outputs. The input signal switches the output between two different circuits.
• SPST (Single-Pole, Single-Throw): This is a simpler type with one input and one output. The input signal either connects or disconnects the output circuit.
• DPST (Double-Pole, Single-Throw): This controls two circuits simultaneously with a single control signal.
• DPDT (Double-Pole, Double-Throw): This is the most complex type, controlling two circuits, each with two output options.

Applications of 24V Relays:

24V relays find extensive use in various applications, including:

• Industrial Automation: Controlling motors, actuators, and other machinery.
• Automotive Systems: Managing lighting, wipers, and other accessories.
• Security Systems: Activating alarms, controlling access points, and monitoring sensors.
• Telecommunications: Routing signals and controlling network devices.
• Home Automation: Switching lights, appliances, and other smart home devices.

Selecting the Right 24V Relay:

Choosing the correct 24V relay involves considering several factors:

• Voltage: Ensure the coil voltage matches the available control signal (24V DC).
• Contact Rating: Select a rating that exceeds the load's voltage and current requirements to prevent overheating and failure.
• Type: Choose the appropriate type (SPDT, SPST, etc.) based on the circuit's configuration.
• Enclosure: Select an enclosure providing sufficient protection against environmental factors.
• Mounting: Consider the mounting style (PCB, panel mount, etc.) for convenient integration.

Troubleshooting 24V Relays:

If a 24V relay malfunctions, troubleshooting involves:

• Checking the coil voltage: Verify that the correct 24V DC voltage is applied to the coil.
• Inspecting the contacts: Examine the contacts for wear, damage, or debris.
• Testing the load: Ensure the load is not drawing excessive current.
• Checking for shorts or open circuits: Use a multimeter to test for continuity and identify any faulty wiring.

Conclusion:

24V relays are versatile and indispensable components in a wide range of applications. Understanding their functionality, types, and selection criteria is crucial for successful system design and operation. By carefully considering the factors outlined in this guide, you can choose and implement 24V relays effectively. Remember always to prioritize safety and follow appropriate electrical safety procedures when working with relays and electrical circuits.
