Troubleshooting and Replacing a Craftsman Push Mower Carburetor: A Step-by-Step Guide

Is your Craftsman push mower sputtering, refusing to start, or running poorly? The culprit might be a clogged or malfunctioning carburetor. This vital engine component mixes fuel and air for combustion, and when it fails, your mowing job grinds to a halt. This comprehensive guide will walk you through troubleshooting your Craftsman push mower carburetor and, if necessary, replacing it.

Understanding Carburetor Problems:

Before diving into repairs, let's identify common Craftsman push mower carburetor issues:

• Engine won't start: A clogged carburetor prevents fuel from reaching the engine.
• Engine sputters and dies: This suggests insufficient fuel flow or a faulty carburetor component.
• Engine runs poorly: Irregular idling, loss of power, or excessive smoking all point towards carburetor problems.
• Engine floods easily: This indicates a problem with the carburetor's float system, allowing too much fuel into the engine.

Troubleshooting Your Craftsman Push Mower Carburetor:

Before replacing the carburetor, let's try some troubleshooting steps:

• Clean the Air Filter: A dirty air filter restricts airflow, impacting the fuel-air mixture. Replace or clean it thoroughly.
• Check the Fuel Line: Ensure the fuel line is clear of obstructions and securely connected.
• Inspect the Spark Plug: A faulty spark plug can mimic carburetor issues. Check for proper sparking and replace if necessary.
• Clean the Carburetor (If possible): Some Craftsman push mower carburetors are relatively easy to disassemble and clean. Use carburetor cleaner and compressed air to remove debris. Refer to your owner's manual for specific instructions. This step might resolve minor clogging issues.

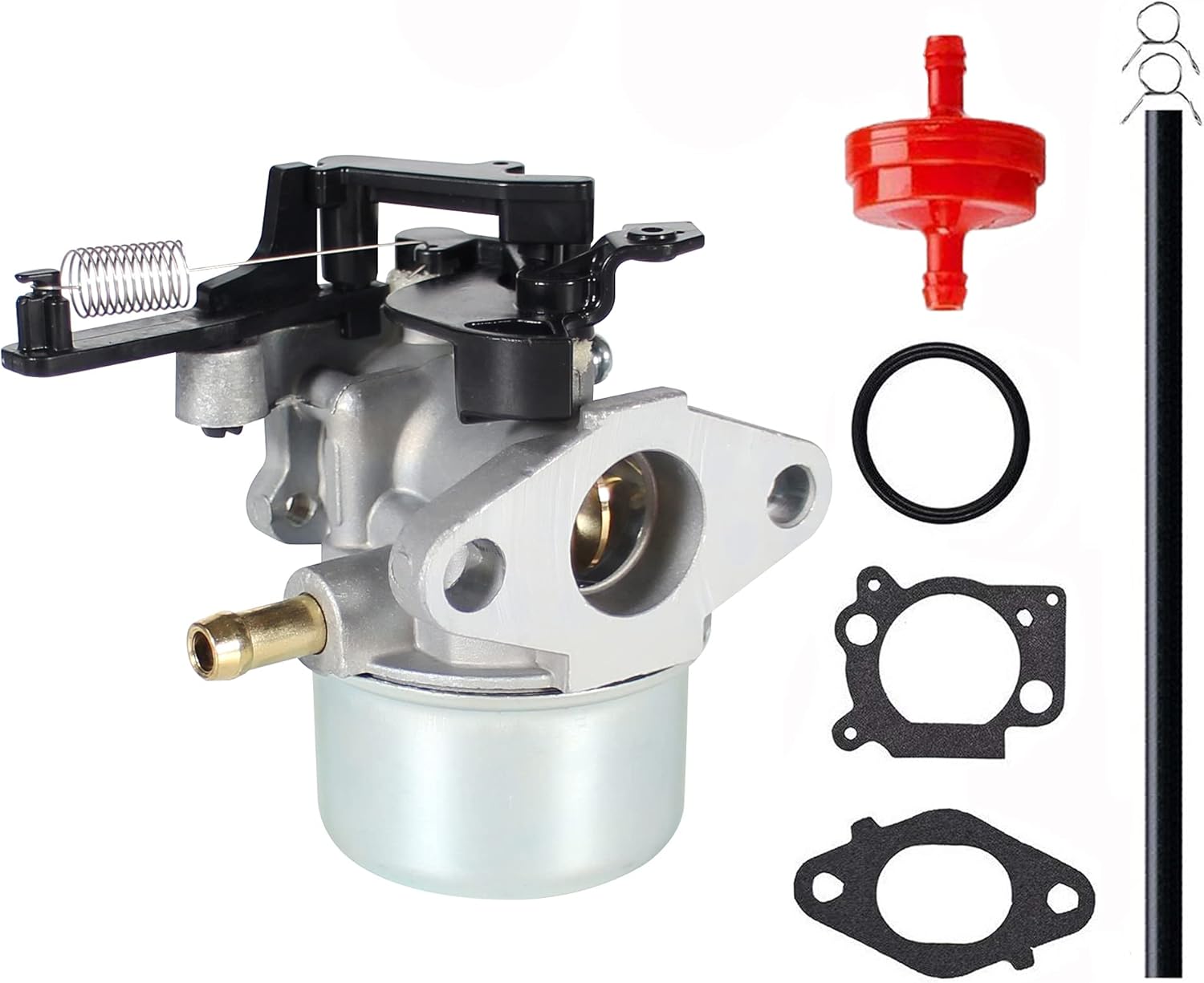

Replacing the Carburetor:

If troubleshooting doesn't solve the problem, replacing the carburetor is often the best solution. Here's a general guide; always refer to your Craftsman push mower's specific owner's manual for detailed instructions:

1. Safety First: Disconnect the spark plug to prevent accidental starting.

2. Gather Your Tools: You'll need screwdrivers (Phillips and flathead), wrenches, possibly pliers, and a new carburetor specific to your Craftsman model. Having a carburetor repair kit on hand can also be beneficial.

3. Locate and Disconnect the Carburetor: Identify the carburetor on your engine (usually near the air filter). Disconnect the fuel line, air intake, and throttle cable. Take pictures as you go to aid in reassembly.

4. Remove the Old Carburetor: Carefully remove the mounting bolts or screws holding the carburetor in place.

5. Install the New Carburetor: Position the new carburetor and secure it with the mounting hardware.

6. Reconnect Components: Reattach the fuel line, air intake, and throttle cable.

7. Reassemble and Test: Reassemble any removed engine components. Reconnect the spark plug and attempt to start the mower.

Finding the Right Replacement Carburetor:

Finding the correct replacement carburetor for your Craftsman push mower is crucial. You'll need your mower's model number. This number is usually located on a sticker under the mower deck or on the engine itself. Use this number to search online retailers like Amazon, eBay, or your local hardware store. Always ensure you're purchasing a carburetor specifically designed for your Craftsman model.

Maintaining Your Carburetor:

Regular maintenance can prevent future carburetor problems:

• Keep the air filter clean.
• Use fresh, clean fuel.
• Drain the fuel tank before storing the mower for extended periods.

By following these steps, you can effectively troubleshoot and replace a Craftsman push mower carburetor, ensuring your lawn stays perfectly manicured. Remember to always consult your owner's manual for model-specific instructions. If you're uncomfortable performing these repairs yourself, contact a qualified small engine repair technician.
