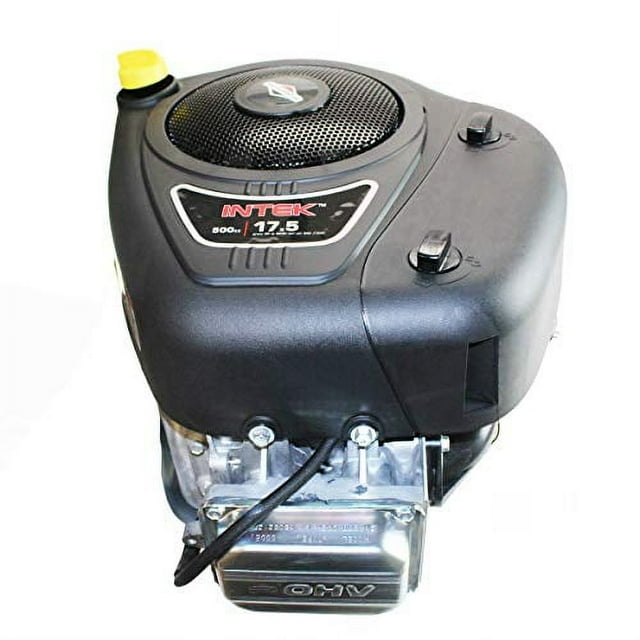

Briggs & Stratton 500cc 175 HP Carburetor: Troubleshooting the "Angry Thomas" Face Issue
Are you staring at your Briggs & Stratton 500cc 175 HP engine, feeling like you're facing a grumpy Thomas the Tank Engine? That telltale "angry face" – characterized by poor performance, sputtering, or complete engine failure – points to carburetor troubles. This isn't just a cosmetic issue; it signals potential problems that can lead to significant damage if left unchecked. This article will guide you through troubleshooting this common problem, helping you get your engine back on track.
Understanding the "Angry Thomas" Face: Symptoms and Causes
The "angry Thomas" face isn't a technical term, but it's a widely recognized visual representation of a common carburetor malfunction on Briggs & Stratton 500cc 175 HP engines. This visual cue is usually accompanied by one or more of the following symptoms:
- Poor Engine Performance: The engine struggles to start, runs rough, lacks power, or stalls frequently.
- Sputtering or Backfiring: The engine sputters, hesitates, or even backfires, indicating an inconsistent fuel mixture.
- Engine Won't Start: Complete failure to start is a clear indication of a significant carburetor problem.
- Excessive Fuel Consumption: Noticeably increased fuel consumption can point to a carburetor issue, specifically a rich fuel mixture.
- Black Smoke from Exhaust: Black smoke indicates an excessively rich fuel-air mixture.
These problems often stem from the following carburetor-related causes:
- Clogged Fuel Jets: Debris or varnish buildup can restrict fuel flow.
- Dirty or Damaged Float: A malfunctioning float can cause incorrect fuel levels in the carburetor bowl.
- Air Leaks: Cracks or loose connections in the carburetor or intake manifold can disrupt the air-fuel mixture.
- Clogged Air Filter: A dirty air filter restricts airflow, leading to a lean fuel mixture.
- Diaphragm Issues: A torn or worn diaphragm can compromise the carburetor's ability to regulate fuel flow.
Troubleshooting Steps: A Step-by-Step Guide
Before diving into complex repairs, always ensure you’re working in a well-ventilated area and disconnect the spark plug to prevent accidental starts. Here's a systematic approach to diagnosing and fixing your carburetor:
-
Inspect the Air Filter: Start with the simplest check: replace a dirty or damaged air filter. A clean air filter ensures proper airflow.
-
Check the Fuel Lines and Filter: Inspect the fuel lines for cracks, leaks, or kinks. Replace the fuel filter; a clogged filter restricts fuel supply.
-
Examine the Carburetor for Visible Issues: Look for any obvious damage, cracks, or loose connections on the carburetor itself.
-
Clean the Carburetor: Carefully remove the carburetor and clean it thoroughly. Use carburetor cleaner and compressed air to remove debris from jets, passages, and other critical components. Remember to consult your engine's manual for specific instructions.
-
Inspect the Float: Check the float for damage or leaks. A faulty float can cause incorrect fuel levels.
-
Check for Air Leaks: Carefully examine the carburetor and intake manifold for any air leaks. Use a carburetor leak detector if necessary.
-
Adjust Carburetor Settings (If Necessary): Only adjust carburetor settings if you're experienced and understand the implications. Improper adjustment can worsen the problem.
When to Seek Professional Help
If you’re uncomfortable disassembling or cleaning the carburetor, or if the problem persists after performing the above steps, it's best to seek professional help. A qualified small engine mechanic has the tools, experience, and knowledge to diagnose and repair more complex carburetor issues.
Preventing Future Problems
Regular maintenance is key to preventing carburetor problems. This includes:
- Regularly changing the air filter.
- Using high-quality fuel.
- Storing the engine properly during off-season.
- Periodically cleaning or replacing the fuel filter.
By systematically troubleshooting your Briggs & Stratton 500cc 175 HP engine's carburetor problems, you can avoid costly repairs and restore its performance. Remember to always consult your engine's manual for specific instructions and safety precautions. Good luck, and happy tinkering!
