4L60E Shift Problems: Is Your Neutral Safety Switch the Culprit?

The 4L60E transmission, while a popular choice in many GM vehicles, is notorious for its share of problems. One common issue that leaves drivers stranded and frustrated is shifting difficulties. While many components can contribute to these problems, a frequently overlooked culprit is the neutral safety switch (NSS). This small but crucial part plays a vital role in your vehicle's ability to start and shift gears, and a faulty NSS can lead to a cascade of frustrating transmission issues.

This article will delve into the intricacies of 4L60E shift problems, focusing on how a malfunctioning neutral safety switch can be the root cause. We'll explore the symptoms, diagnostic procedures, and ultimately, how to resolve this common problem.

Understanding the Neutral Safety Switch (NSS)

The neutral safety switch, also known as the neutral start switch, acts as a safety mechanism. Its primary function is to prevent the engine from starting unless the transmission is in the Park (P) or Neutral (N) position. This prevents accidental starting while the vehicle is in gear, which could lead to dangerous situations.

Beyond its starting function, the NSS also plays a crucial role in the proper functioning of the transmission's electronic control system. It sends signals to the transmission control module (TCM) indicating the position of the gear selector. A faulty NSS can disrupt these signals, leading to a range of shifting issues.

Symptoms of a Faulty Neutral Safety Switch in a 4L60E Transmission

Several symptoms indicate a potentially failing neutral safety switch in your 4L60E transmission. These include:

• Inability to Start: This is the most obvious symptom. The engine cranks but fails to start, even though the key is in the "on" position and the brake pedal is depressed (if applicable).
• Intermittent Starting Problems: The vehicle may start sometimes but refuse to start at other times.
• Shifting Difficulties: The transmission might slip, hesitate, or refuse to shift into certain gears.
• Erratic Shifting: The transmission might shift unexpectedly or at the wrong times.
• Check Engine Light: A malfunctioning NSS can trigger the check engine light, accompanied by a diagnostic trouble code (DTC).

It's important to note that these symptoms can also be indicative of other 4L60E transmission problems, so a thorough diagnosis is crucial.

Diagnosing a Faulty Neutral Safety Switch

Diagnosing a faulty NSS requires a systematic approach:

1. Visual Inspection: Begin with a visual inspection of the NSS for any signs of damage, corrosion, or loose wiring.
2. Check for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored DTCs. Certain codes directly relate to the NSS.
3. Ohmmeter Test: Use a multimeter to test the continuity and resistance of the NSS according to the specifications in your vehicle's repair manual. This involves checking the electrical connections and verifying the switch operates correctly when moved between Park and Neutral.
4. Test Drive: A test drive can help pinpoint the specific shifting issues related to the NSS malfunction.

If any of these tests indicate a problem with the NSS, it's likely the culprit behind your 4L60E shifting problems.

Replacing the Neutral Safety Switch

Replacing the neutral safety switch is generally a straightforward procedure, though the complexity can vary depending on your vehicle model. Consult your vehicle's repair manual for specific instructions. Generally, the process involves:

• Disconnecting the battery: Always disconnect the negative terminal of the battery before working on any electrical components.

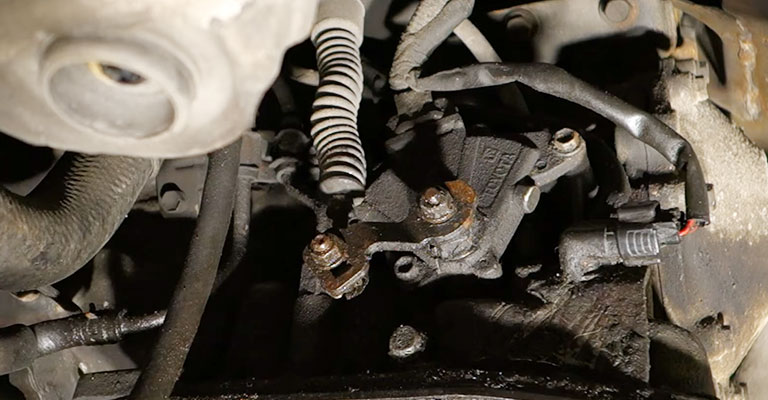

• Accessing the NSS: The NSS is usually located on the transmission's side. You might need to remove some components to access it.
• Disconnecting the wiring harness: Carefully disconnect the wiring harness connected to the NSS.
• Removing the old NSS: Carefully remove the old NSS.
• Installing the new NSS: Install the new NSS, ensuring it's correctly aligned and seated.
• Reconnecting the wiring harness: Reconnect the wiring harness securely.
• Reconnect the battery: Reconnect the battery's negative terminal.

Conclusion

A faulty neutral safety switch can cause a range of frustrating 4L60E transmission problems. Understanding the symptoms, performing proper diagnostics, and replacing the NSS when necessary can save you time, money, and potential headaches down the road. Remember to always consult your vehicle's repair manual for specific procedures and safety precautions. If you are not comfortable performing this repair yourself, consult a qualified mechanic.
